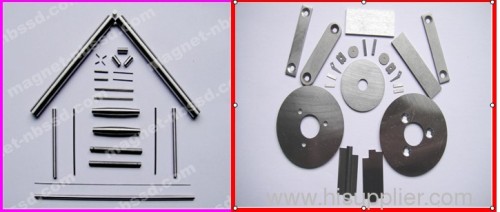

FeCrCo magnet door/window sensor

Price: 5.0~10.0 USD
Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: FCCP
Production Capacity: 150T/year
Delivery Date: 20days
Means of Transport: Land
Packing: Customized

Product Type: Permanent Magnet
Material: FeCrCo
Material Grade: FeCrCo 44/4
Plating: None
Length: 50+/-0.15
Thickness (O.D.): 6.2
Width: 9
W:6g


FeCrCo magnets is a new permanent material which emerge at the early of 70s. Its performance is similar
to Alnico magnet 5, but better magnetic consistence than Alnico 5.

FeCrCo magnets have super performance at mechanical processing. It can be machined by probing, drilling,
grinding, punching and so on.

FeCrCo magnets also can be made to small and complex shape components. Its minimum diameter can
reach to 0.05mm and the thinnest thickness can teach to 0.1mm. The surface of finished components can
be added various coatings according to the users' request. The components also can be handled by grinding
with metallic luster and the surface luster can be up to the highest.

FeCrCo magnets have good temperature stability and corrosion resistance. The high Curie temperature is a
bout 680C and the highest working temperature can reach to 400C. And its reversible temperature
coefficient is very small, just -0.0128%°C. It is very suitable to high prevision components.

As FeCrCo magnets have good magnetic and mechanical property, it is widely used in different fields. For
examples, in civilian field, it is made into door sensors, highspeed duplicators, and fake currency checkers.
 In electronic telecommunications, it can be made to hysteresis motors, computer embroidery machines,  relays, buzzer of mobile phone and so on. It is also used in home appliances, like loud speakers, TV, aid hearing, electronic magnetic lock,  alarm machine.

Characteristics and performance of FeCrCo magnets
1. Has similar Alnico5 magnets performance.
2. Can be machined by drilling, milling, punching and so no,
3. Can be made to small and complex shape components. Its minimum diameter can reach 0.05mm and the
 thinnest thickness can reach 0.1mm, so it is suitable for the production of high-precision components.
4. Has good temperature stability and corrosion resistance. The high Curie temperature is zbout 680 and the
highest working temperature can reach 400.
